#------- EXAMPLE OPTICALLY THICK -----------------------------------------------
import exospy.exospy as ep
import numpy as np
import matplotlib.pyplot as plt
from tqdm import tqdm
SZAmin = 0 # deg
SZAmax = 90 # deg
LAmin = 0 # deg
LAmax = 20 # deg
altitude = 600 # km
# To plot GUVI Orbit
numPOS = 20 # fixed for now
numLA = int(np.ceil(LAmax-LAmin))
phi = np.linspace(SZAmin*np.pi/180,SZAmax*np.pi/180,numPOS)
radius = 1 + altitude/6371# RE
x_orb = radius*np.cos(phi)
y_orb = radius*np.sin(phi)
# Generating GUVI LOS
r_los = np.zeros((numPOS*numLA,3))
r_pos = np.zeros((numPOS*numLA,3))
count = 0
for i in range(numPOS):
[th,rho] = ep.cart2pol(x_orb[i],y_orb[i])
for j in range(numLA):
r_los[count,0:2] = [-np.sin(th+j*np.pi/180),np.cos(th+j*np.pi/180)]
r_pos[count,0:2] = [x_orb[i],y_orb[i]]
count = count + 1
# To plot Earth
phi = np.linspace(0,2*np.pi,50)
radius = 1
x_earth = radius*np.cos(phi)
y_earth = radius*np.sin(phi)
# Plotting GUVI Geometry projected to Equatorial plane
fig = plt.figure(figsize=(10,10))
ax = fig.add_subplot(111)
ax.plot(x_orb,y_orb,color='b',linewidth = 1)
ax.plot(x_earth,y_earth,color='k',linewidth = 2)
ax.scatter(x_orb,y_orb,color='b')
## Plotting LOSs
for i in range(numLA):
new_point = r_pos[i,:] + 5*r_los[i,:]
ax.plot([r_pos[i,0],new_point[0]],[r_pos[i,1],new_point[1]],color= 'g',zorder = -1)
for i in range(11*numLA,12*numLA):
new_point = r_pos[i,:] + 5*r_los[i,:]
ax.plot([r_pos[i,0],new_point[0]],[r_pos[i,1],new_point[1]],color= 'g',zorder = -1)
ax.grid('on')
ax.set_xlabel('X [RE]',fontsize=12)
ax.set_ylabel('Y [RE]',fontsize=12)
ax.axes.set_xlim(left=-0.05, right=1.2)
ax.axes.set_ylim(bottom=-0.05, top=1.2)
plt.show()
# Reading Source Function file
buf = 'VolumeEmissionRates/Sfn_03202020.txt'
[Altitude,SZA,Temp,O2_dens,H_dens,SS,SM,Irradiance] = ep.ReadingSourceFile(buf)
# Calculating Intensity
IntensityV = np.zeros((numPOS*numLA,1))
for i in tqdm(range(len(IntensityV)),"Processing...",ascii=False, ncols=75):
IntensityV[i,0] = ep.CalculateLOSfromSourceFunction(r_pos[i,:],r_los[i,:],Altitude,SZA,Temp,O2_dens,H_dens,SS,SM,Irradiance) #CalculateLOSfromSourceFunction(r_pos[i,:],r_los[i,:],Altitude,SZA,Temp,O2_dens,H_dens,SS,SM,dl = 0.1)

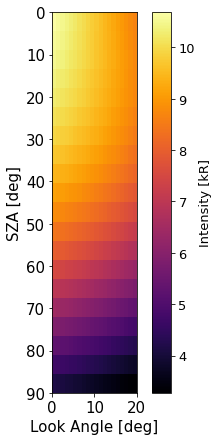

# Plotting intensities
Intensities = np.reshape(IntensityV,(numPOS,numLA))
extent = 0,20,90,0
fig, ax = plt.subplots(figsize=(7,7))
im = ax.imshow(Intensities/1e9, cmap = 'inferno',origin = 'upper', extent = extent)
cb = fig.colorbar(im, fraction=0.056, pad=0.04)
cb.set_label('Intensity [kR]',fontsize = 13)
cb.ax.tick_params(labelsize=13)
ax.set_ylabel('SZA [deg]',fontsize = 15)
ax.set_xlabel('Look Angle [deg]',fontsize = 15)
plt.xticks(fontsize=15)
plt.yticks(fontsize=15)
plt.show()
